L-concrete block
Our concrete blocks are steel-reinforced, can be set up individually or as a group. They are suitable for any form of securing or the modular structure of landscaped, residential or building plots.
Please refer to the table below for all important data so that you can order the right element for your project.

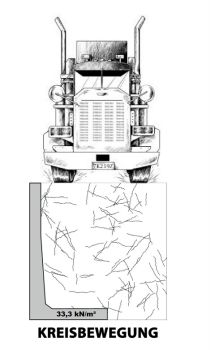

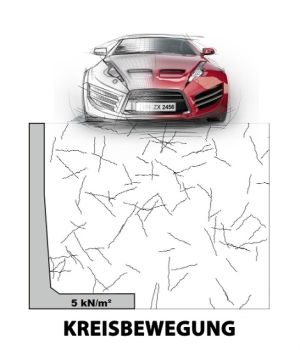

The load class of all our L-concrete blocks is: 5 KN / m² - Do you need special concrete, i.e. L-concrete blocks with a much higher load-bearing capacity? Then we can offer you a value of 33.3 KN / m². We charge a 25% surcharge on the list price for this special production.
Material:
Concrete C30 / 37 with steel reinforcement according to concrete exposure class: XF4XA1, XS1, XD2, XC4 manufactured in the VRI process (vibration compression compaction). Because of this building process all stones had outside as viewside, a change is not possible.
| Höhe cm |
Breite cm |
Fuß cm |
Preis inkl. MSt
(Einzelabnahme/ ohne Trsp) |
Gewicht kg |
Artkl.Nr. |
| 50 |
100 |
30 |
150 € |
194 |
LBETON50 |
| 60 |
100 |
40 |
155 € |
251 |
LBETON60 |
| 70 |
100 |
45 |
168 € |
288 |
LBETON70 |
| 80 |
100 |
50 |
172 € |
336 |
LBETON80 |
| 90 |
100 |
55 |
175 € |
408 |
LBETON90 |
| 100 |
100 |
60 |
190 € |
480 |
LBETON100 |
| 110 |
100 |
65 |
203 € |
504 |
LBETON110 |
| 120 |
100 |
70 |
216 € |
552 |
LBETON120 |
| 130 |
100 |
75 |
229 € |
600 |
LBETON130 |
| 140 |
100 |
90 |
242 € |
672 |
LBETON140 |
| 150* |
100* |
100* |
258 €* |
720* |
LBETON150* |
| 160 |
100 |
105 |
282 € |
768 |
LBETON160 |
| 170 |
100 |
105 |
348 € |
840 |
LBETON170 |
| 180 |
100 |
105 |
367 € |
912 |
LBETON180 |
| 190 |
100 |
105 |
395 € |
960 |
LBETON190 |
| 200 |
100 |
115 |
407 € |
1008 |
LBETON200 |
| 210 |
100 |
120 |
420 € |
1056 |
LBETON210 |
| 220 |
100 |
125 |
442 € |
1104 |
LBETON220 |
| 230 |
100 |
130 |
459 € |
1200 |
LBETON230 |
| 240 |
100 |
140 |
520 € |
1728 |
LBETON240 |
| 250 |
100 |
145 |
555 € |
1776 |
LBETON250 |
| 260 |
100 |
145 |
574 € |
1848 |
LBETON260 |
| 270 |
100 |
150 |
587 € |
1896 |
LBETON270 |
| 280 |
100 |
150 |
626 € |
1944 |
LBETON280 |
| 290 |
100 |
160 |
659 € |
2016 |
LBETON290 |
| 300 |
100 |
170 |
719 € |
2088 |
LBETON300 |
| 310 |
100 |
180 |
751 € |
2160 |
LBETON310 |
| 320 |
100 |
185 |
785 € |
2256 |
LBETON320 |
| 330 |
100 |
190 |
832 € |
2304 |
LBETON330 |
| 340 |
100 |
195 |
878 € |
2376 |
LBETON340 |
| 350 |
100 |
200 |
930 € |
2448 |
LBETON350 |
| 360 |
100 |
205* |
996 € |
2760 |
LBETON360 |
| 370 |
100 |
205* |
1.028 € |
2880 |
LBETON370 |
| 380 |
100 |
205* |
1.089 € |
3000 |
LBETON380 |
| 390 |
100 |
210* |
1.150 € |
3120 |
LBETON390 |
| 400 |
100 |
215* |
1.200 € |
3240 |
LBETON400 |
* By load class 4 and 5 the foot is not complett with concrete, so the steel looks out and must install and fill up direct on final location (the still producted part with concrete is 160cm)
* Sample price and size / article number for web shop presentation
The thickness of all elements is 12cm at the top edge. This becomes thicker from a height of 180cm to 240cm towards the foot and then reaches 15cm. From 250cm to 400cm this conical reinforcement is then 25cm thick.
Please contact us before placing your order at info@sorfan.de, as we have to calculate the shipping costs individually for the selected item!
